Bulk U/UTP Cat6 Ethernet Cable 1000ft/500ft VCELINK

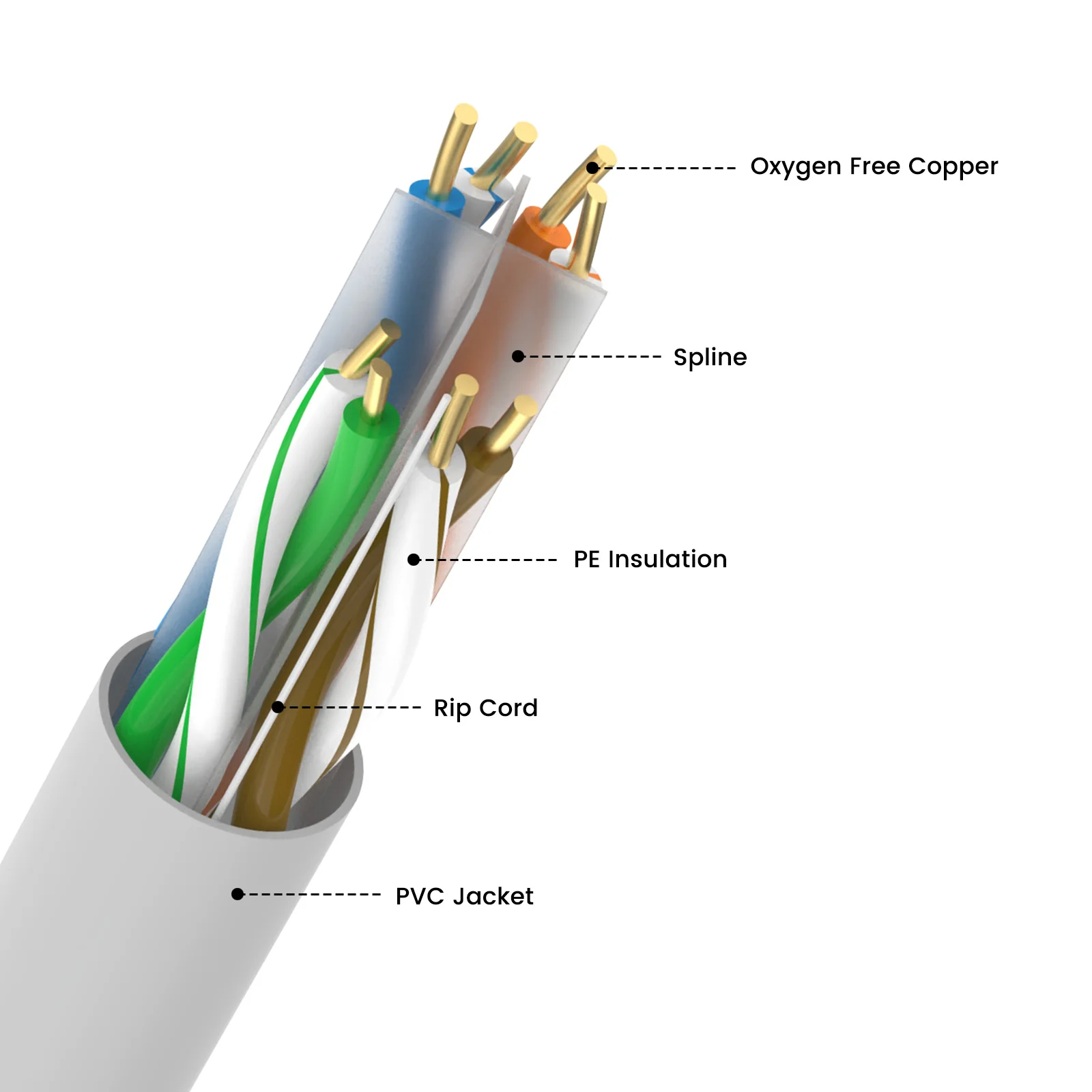

Excellent Cat6 Performance

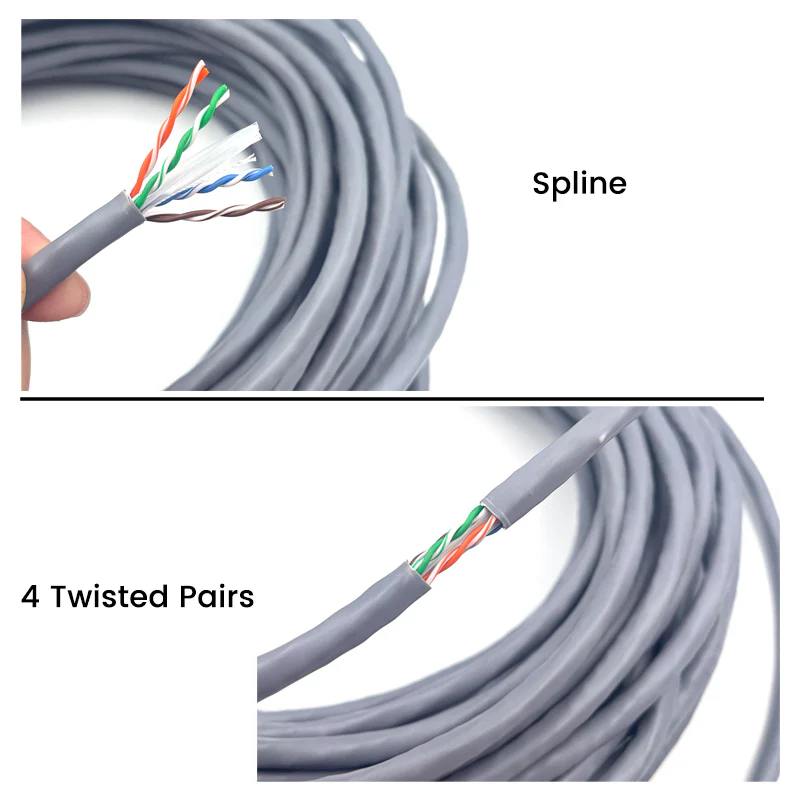

-4 pair easily identified color-striped pairs;

-Excellent attenuation and crosstalk characteristics;

-Adopt high-quality 23 AWG standard 1.02mm single strand.

Safe & Reliable

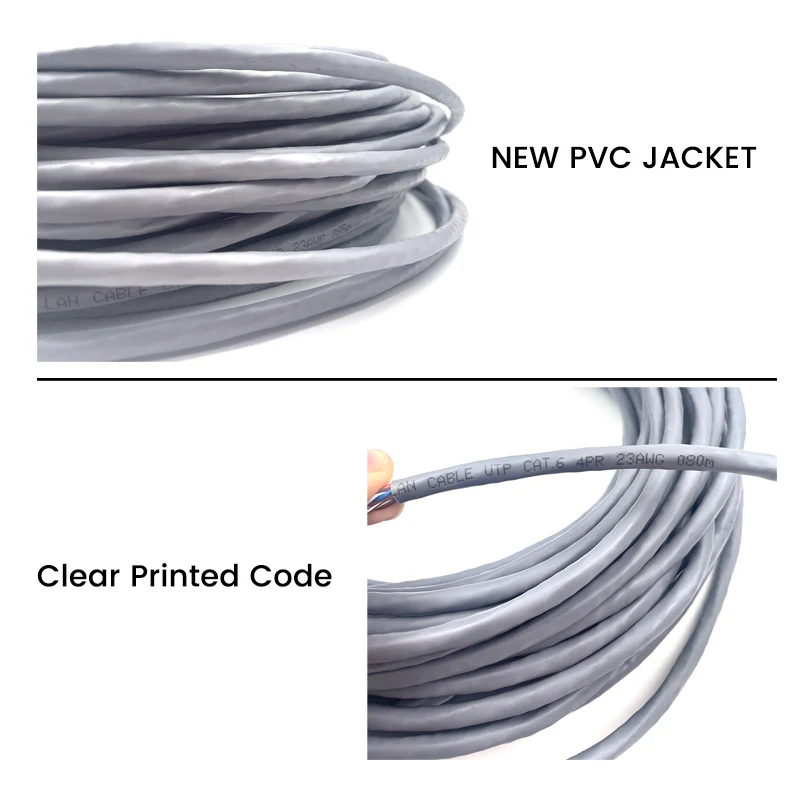

CMR jacket is UL-listed and is flame retardant for use between floors, within walls, and in non-ventilated spaces. It helps us prevent the spread of fire to floors in vertical installations.

Wide Application

-ANSI/TIA-568-C.2 and ISO 11801;

-EN50173 and IEC61156-5;

-IEEE 802.3af and IEEE 802.3at.

OEM/ODM Customization

-Support customized Ethernet cables with various specifications. Please send us an inquiry or email us.

Product Specification
Type	U/UTP Cat6 Cable	Wire Gauge	23AWG
Conductor Material	Copper	Insulation Material	HDPE
Insulation Diameter	1.02mm	Number of Conductors	8 Twisted in 4 Pairs
Drain Wire	None	Shield	None
Outer Jacket Material	PVC	Outer Jacket Diameter	6.40mm±0.20mm
Cable Length	500ft/1000ft	MOQ	300 Boxes



Electrical Characteristics
Impedance	1-250MHz 100±15(Ohms)	Rated Temperature	75C°
DC Resistance Unbalance(%)	Max 2.5	DC Resistance 20C°	8.4(Ohms/100m)
Insulation Resistance	>5000MΩ *Km	Dielectric strength	DC 2500V 2S
