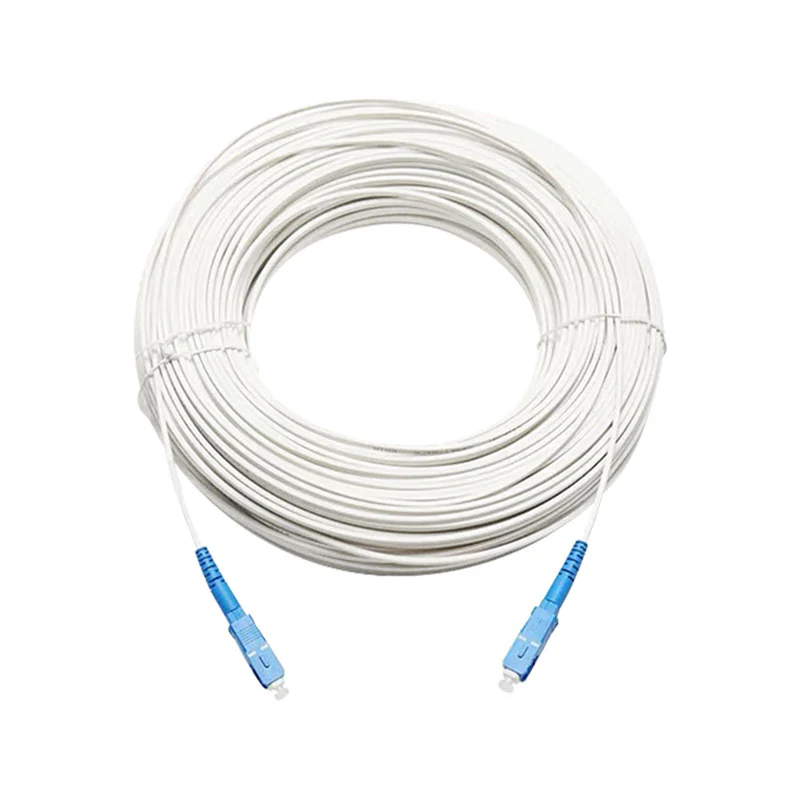

FTTH Drop Cable With Messenger VCELINK

High Bandwidth

-The optical system has the characteristics of a wide frequency band, large communication capacity, small fading, anti-interference ability, and confidentiality;

-Butterfly cable can help you do more conveniently to achieve the FTTH.

Durable Structure

-The SC-SC fiber patch cable is located in the center and equipped with two parallel steel strength members to protect the fibers;

-The wire messengers help you to better secure patch cords to walls and floors, keeping them neat and well-protected;

-Its simple structure makes it lightweight and highly practical. Easy to install and has good bending resistance.

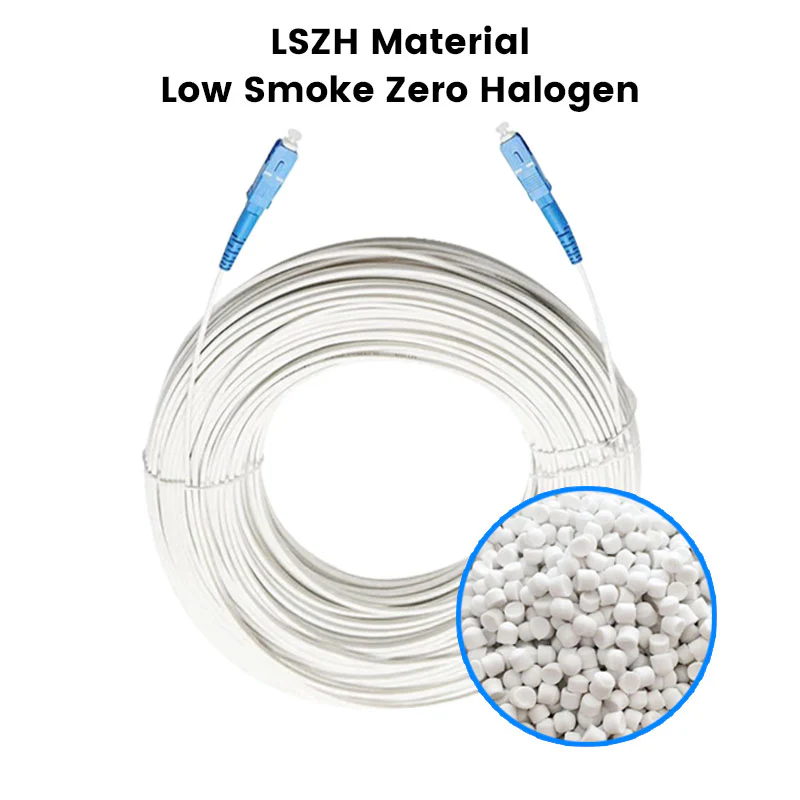

LSZH Outer Sneath

The outer sheath is made of Low Smoke Zero Haloge, which will not release halogen-containing gas in the case of combustion. The smoke concentration is low, which can avoid and reduce the fire and the secondary damage caused by fire.

Ease of Use

The pre-terminated fiber optic cables are easy to install.

Adapter's Type	SC/APC-SC/APC	Outer Sheath Material	LSZH
Messenger Material	Steel	Sheath Member Material	Steel
Quantity of Fibers	1 Core	Durability	≥1000 times
Insertion Loss	≤0.3db	Return Loss	≥50db
Cable Length	5m~100m, or customized	Operating Temperature	-40℃-60℃
Minimum Order Quantity	10 Pieces	Delivery Time	5-7 Days After Payment



FTTH patch cord with messenger is SC-SC connectors, APC-APC ferrule end-face. Its special fiber resistance to bending provides greater bandwidth. So it supports long-distance and local optical transmission networks, data transmission networks, CATV, FTTH systems, etc.

VCELINK supports various customization. Feel free to contact us or send us an inquiry!

Learn more from Fiber Optic Cable Types: What You Should Know.
