Toolless Cat6a Twist Keystone Jack, Unshielded VCELINK

Toolless & Twist Locking Design

-Features a manual twist-lock lever for easy cap control and cable protection;

-Self-locking wire caps hold wires tightly in place without a punch-down tool.

High-speed Cat6a Performance

-Compliant with ANSI/TIA/EIA-568B.2.10 Standards, delivering the maximum speed of 10 Gbps and maximum bandwidth of 500 MHz;

-Gold-plated contacts provide maximum corrosion resistance and stable data transmission;

-Supports PoE applications.

Reliability & Durability

-Made of new PC material to ensure a long service life;

-The RJ45 port is tested for over 750 mating cycles for frequent plugging and unplugging;

-IDC terminals support over 250 termination times.

Wide Compatibility

-Designed with a slim body to snap into patch panels or wall plates;

-Suitable for 22-24 AWG solid and stranded wires;

-Backward compatible with Cat6, Cat5e, and Cat5 cabling.

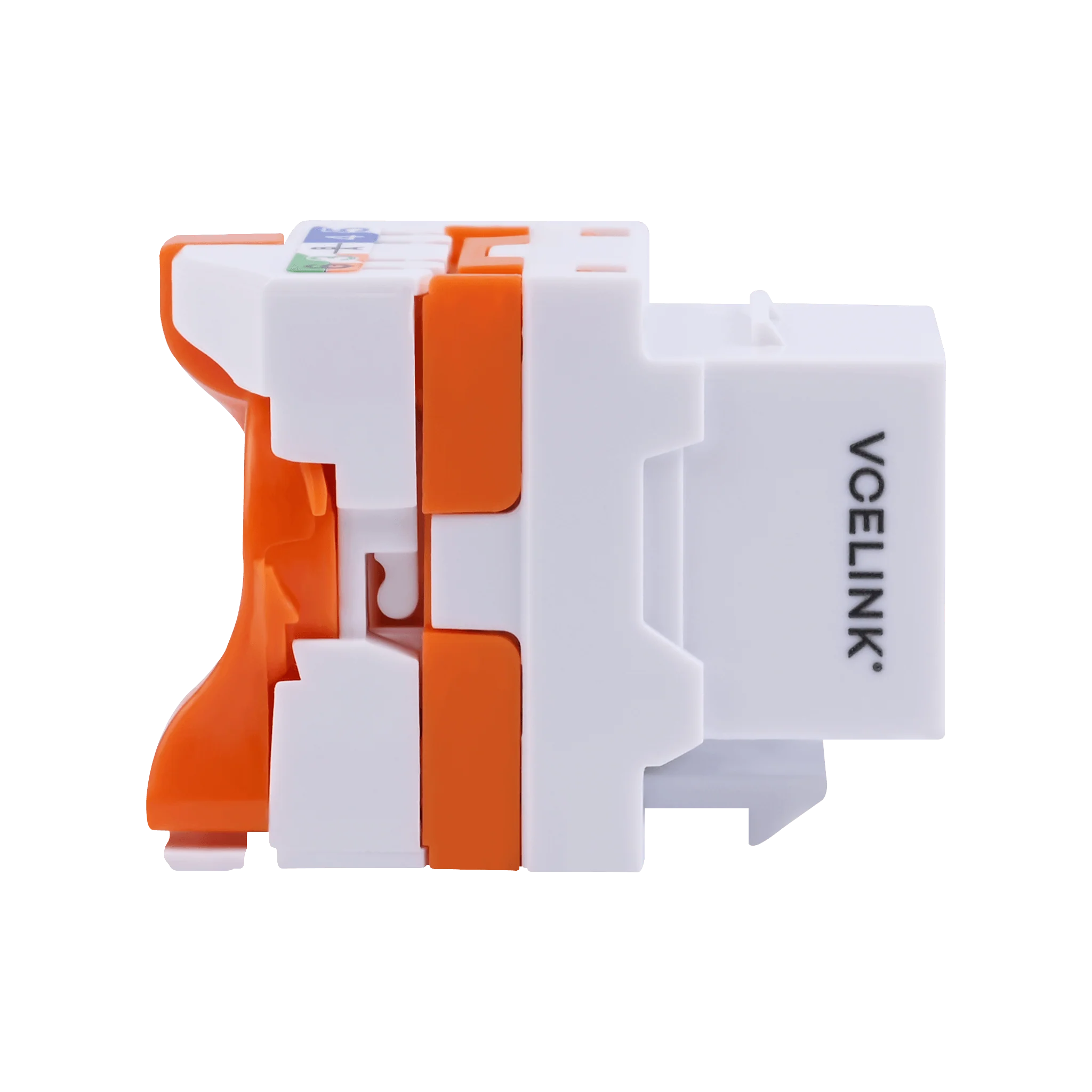

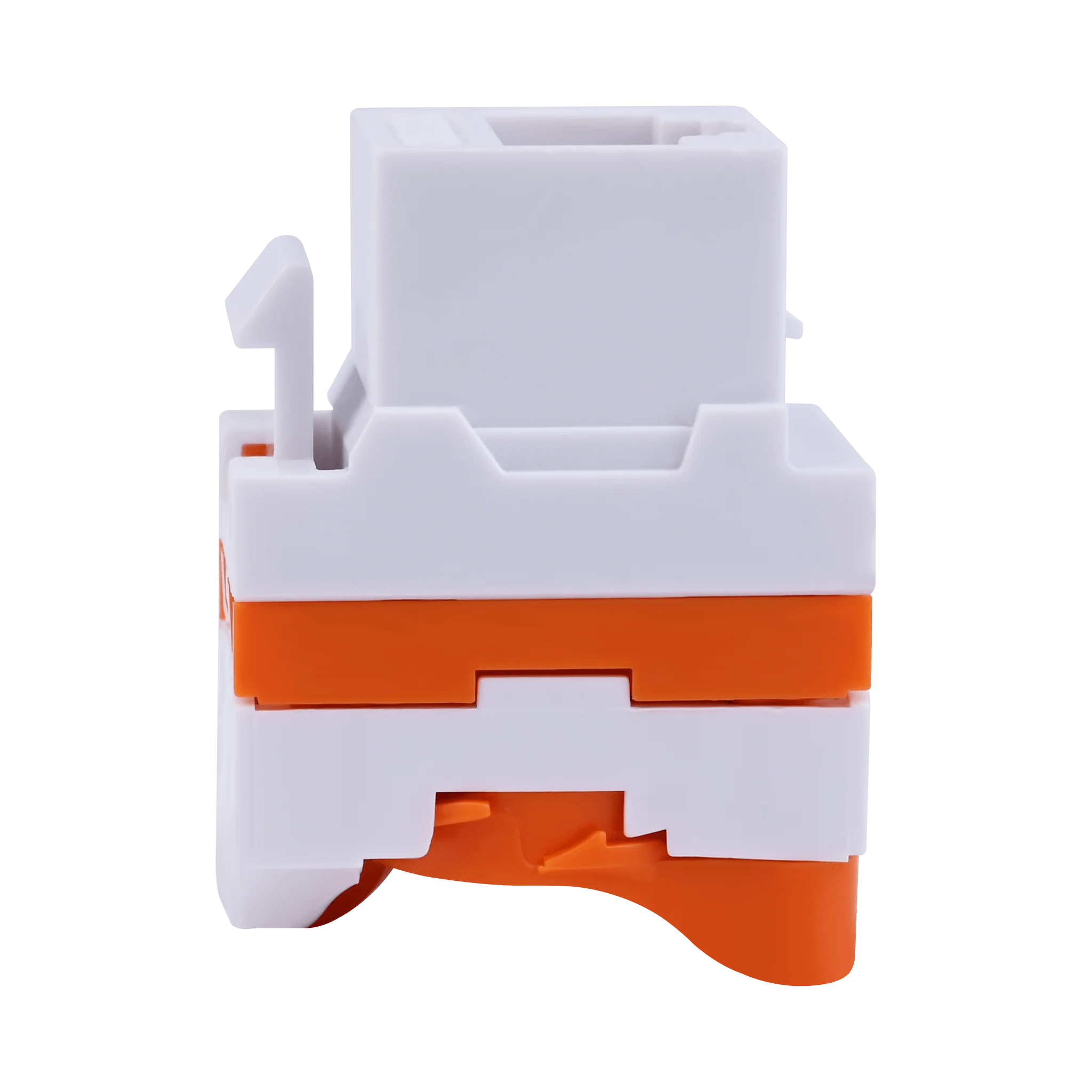

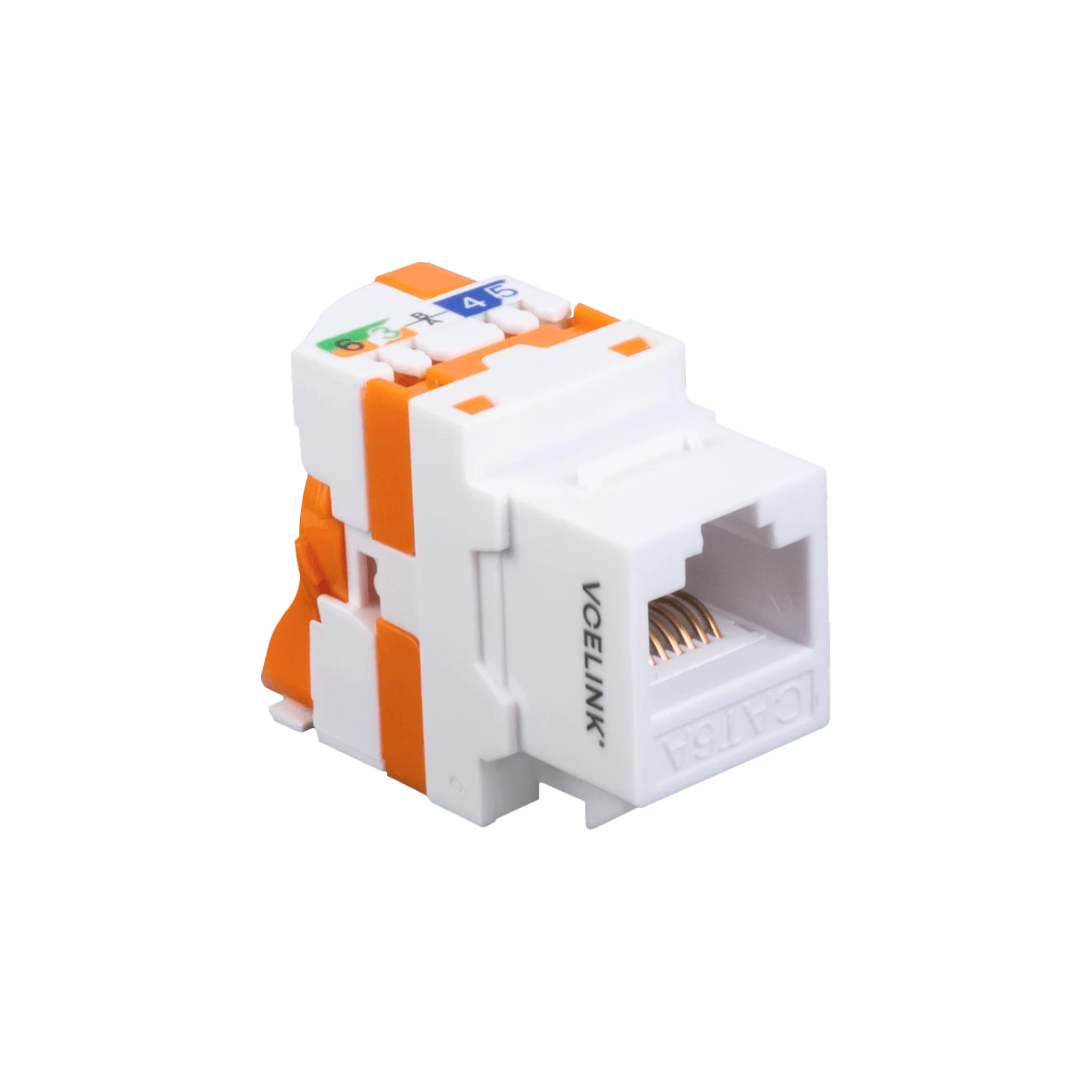

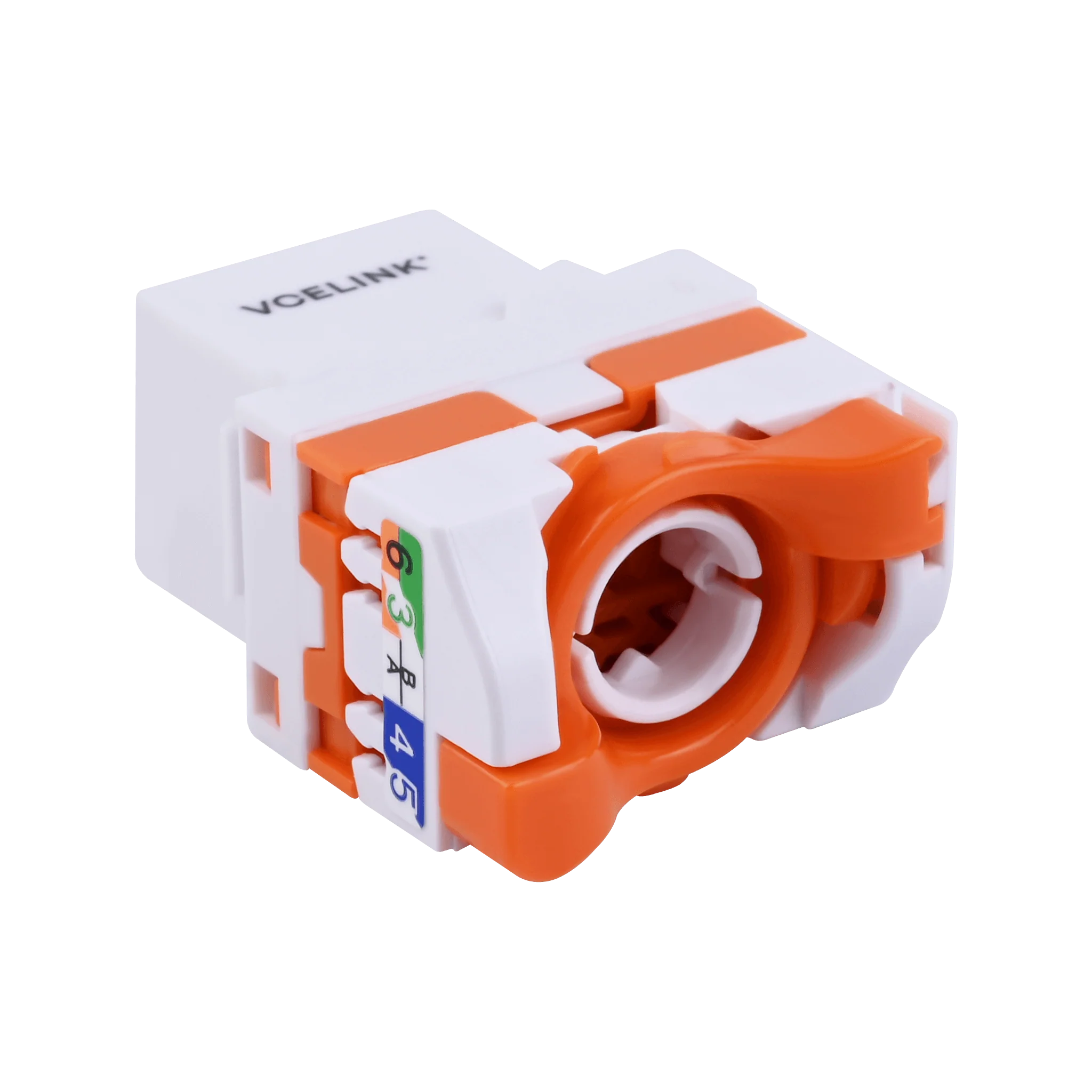

VCELINK Cat6a keystone jack with a twist level allows for easy installation without any punch down tools. It features a 180-degree design, resulting in less strain from bending. The wire cap can easily fix wires and also block dust and debris to achieve a reliable network installation. T568A/B labels are clearly printed for easy reference, and contacts are gold-plated for stable signal integrity. It is ideal for creating a new network port in a patch panel or wall plate for your home and office network installations.

Also available in the Cat6 category (C262BL-C6) to suit your needs.

Our keystone jack is RoHS, REACH, and CE certified to meet industry standards. If you need any bulk needs, please contact us or email us.
