Unshielded Cat6 Wall Jack VCELINK

Cat6 Performance

ANSI/TIA/EIA-568B.2.1 compliant, our Cat6 keystone jack delivers Cat6 performance with data speeds up to 1000 Mbps and bandwidth up to 250 Mhz.

Easy Installation

-Supports T568A and T568B wiring schemes for quick reference;

-The 90-degree design makes it easy to install, ideal for professionals or beginners.

Durable Design

-Durable gold-plated RJ45 contacts provide stable and corrosion-free connection;

-Features a dust cover for wire protection.

Wide Compatibility

-Compatible with keystone wall plates and surface mount boxes;

-Supports 23-24 AWG solid and stranded wires;

-Backwards compatible with Cat5e and Cat5 cabling.

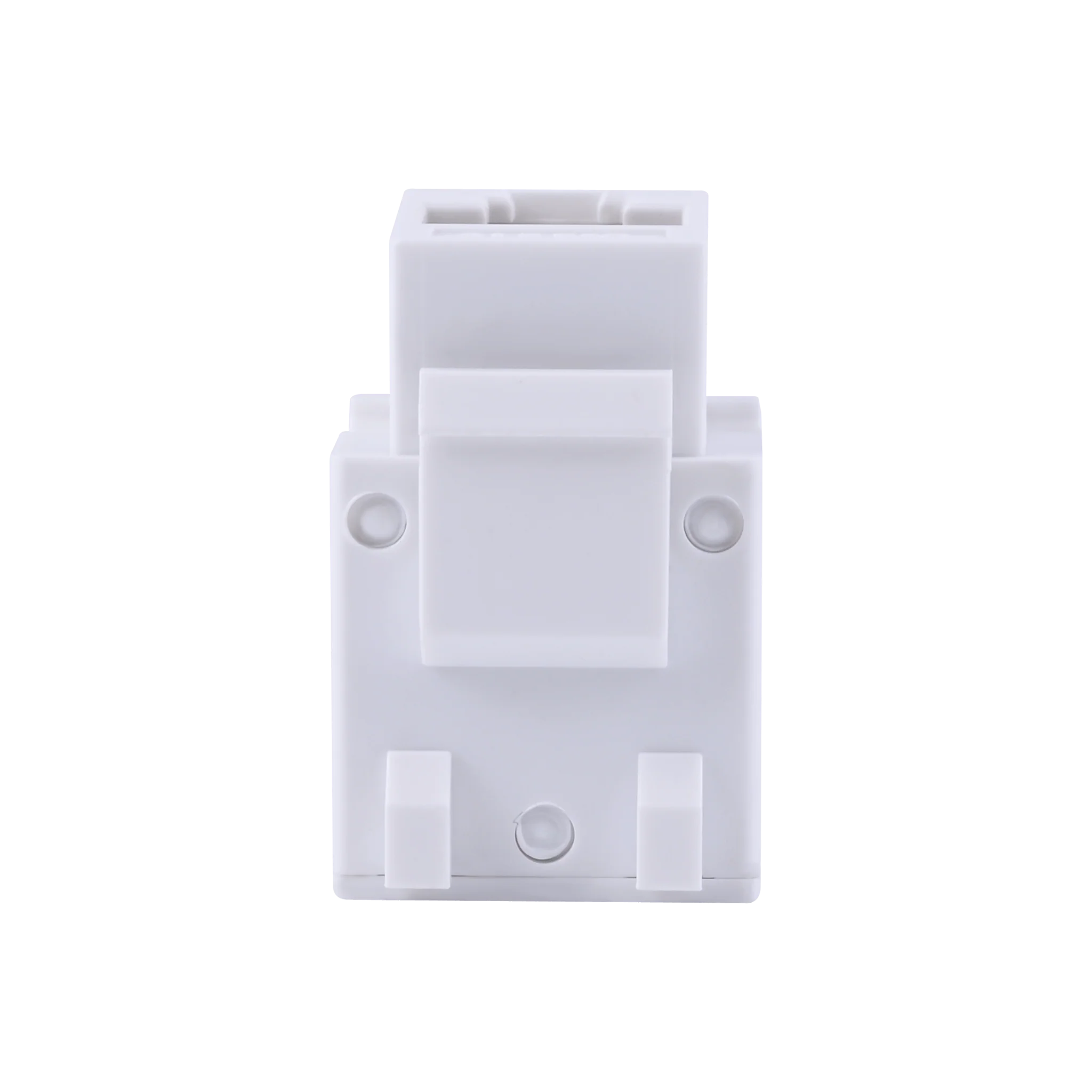

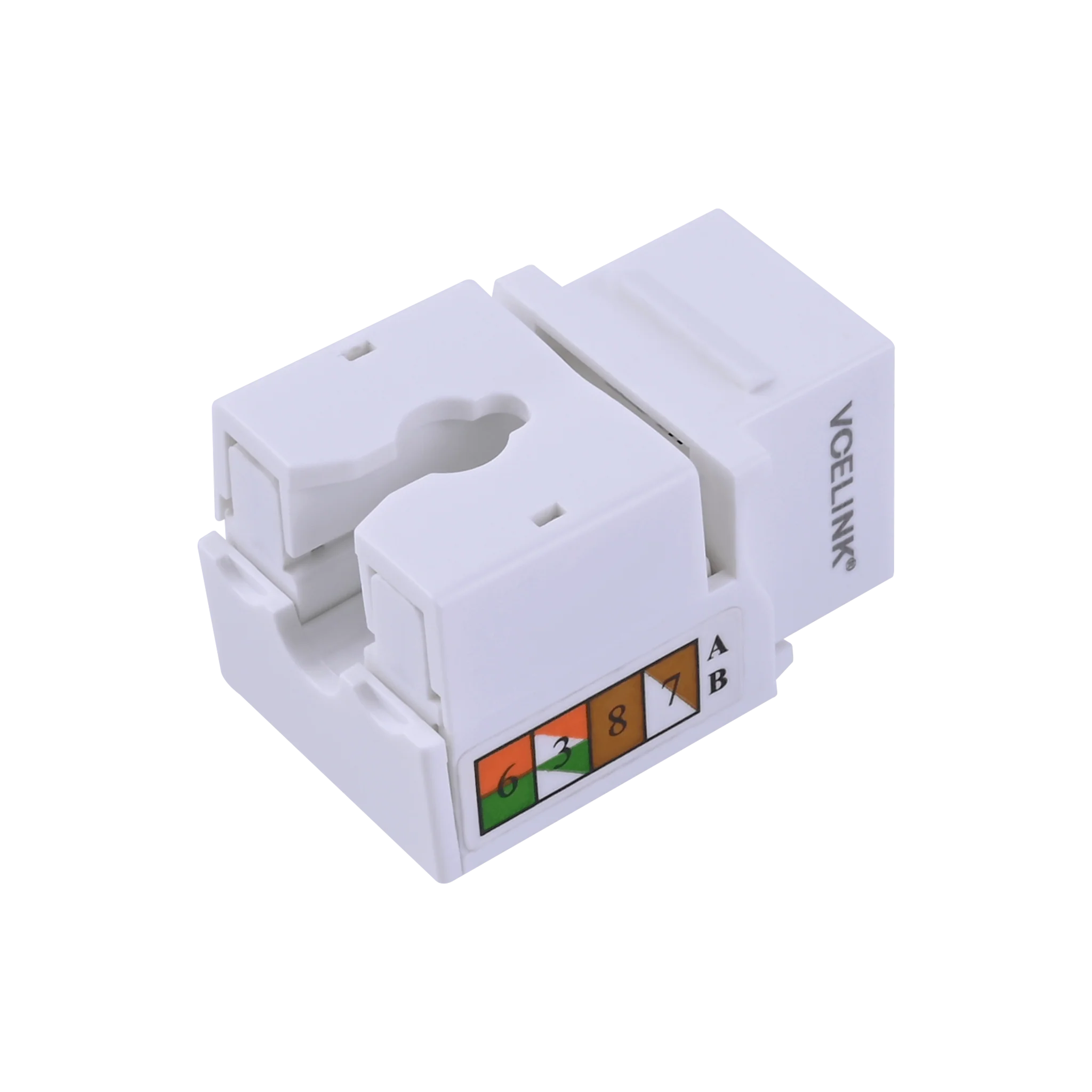

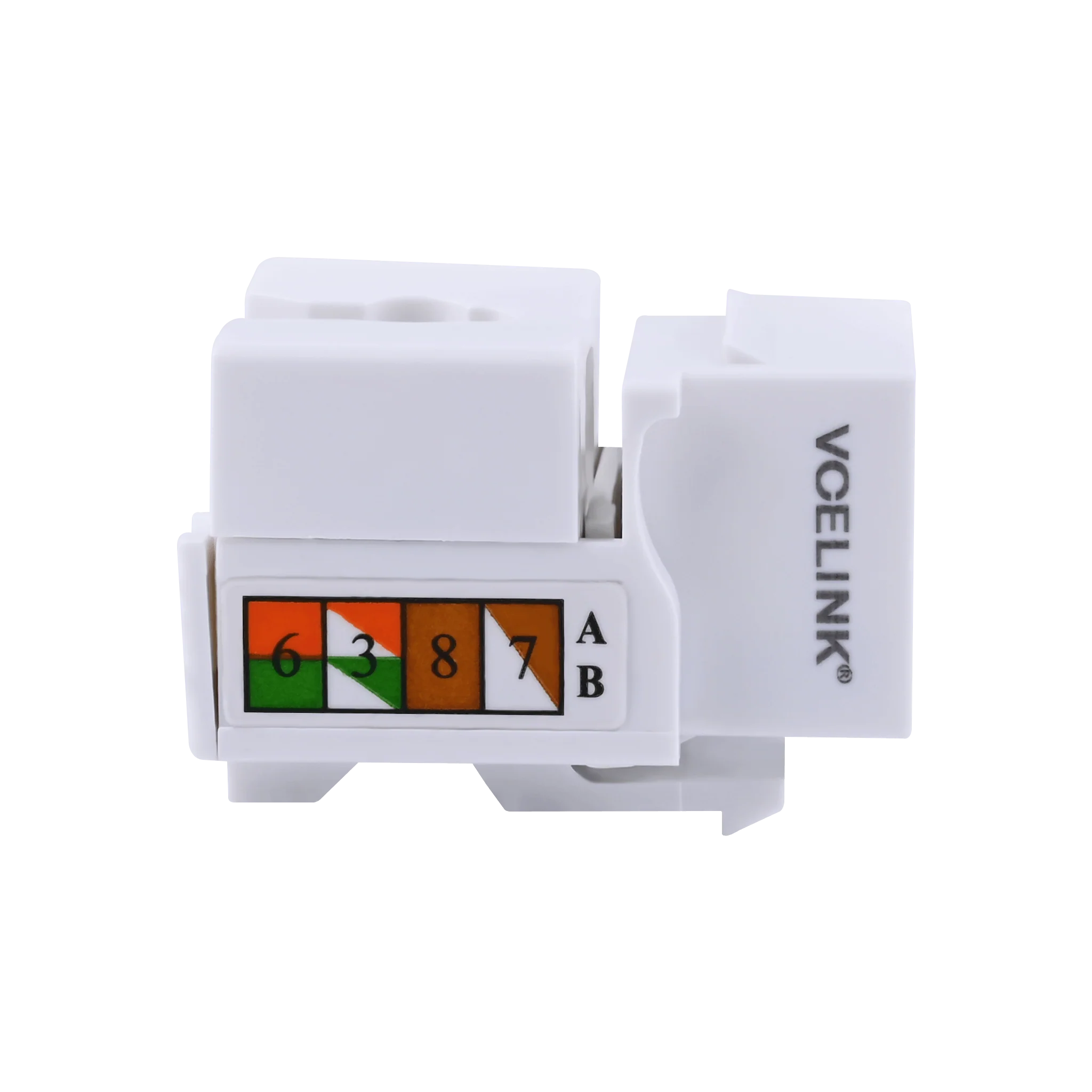

VCELINK keystone jack provides high-speed network connections for Cat6 UTP structured cabling systems. The punch down keystone jack supports both T568A and T568B wiring with a 90 degree IDC terminals. Gold-plated contacts and PCB design ensure optimal signal integrity. It comes with a white dust cover that can not only secure the crimped wires but also prevent dust from entering. It is compatible with surface mount boxes, keystone wall plates.

Note: Two keystone jacks cannot be installed side-by-side in the patch panel due to their width.

If you have any questions, feel free to contact us or email us.
